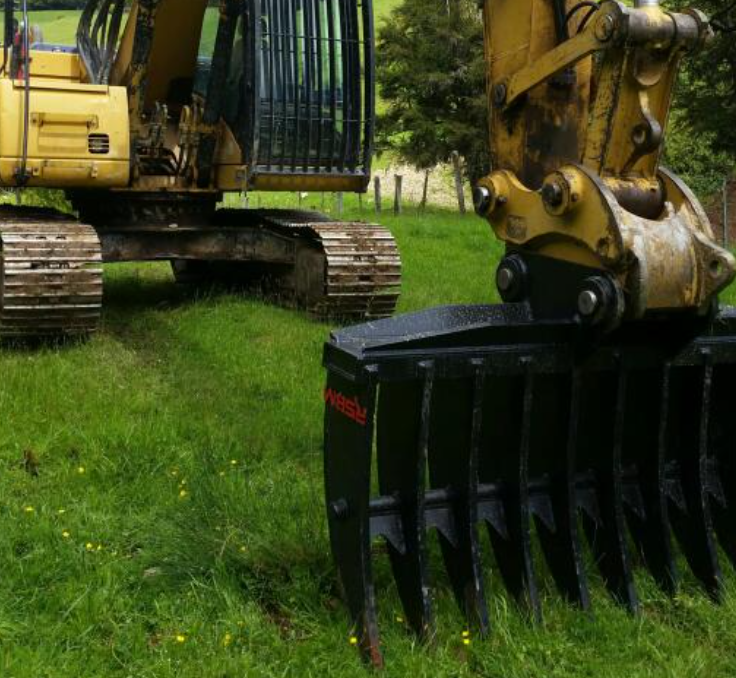

Top Quality mini excavator attachments excavator Rake root rake
1,Q460C/Q690/Hardox400/NM400/AR400 Raw material
2,Made out of proper grade steel (up from middle cleass machine,out of NM400 on sieving ribs)
3,Beveled high tensile steel lip for easier penetrating
4,Double beveled NM400 bolt-on cutting edge or rock duty teeth+4140 bucket pins
5,Strengthened upper bem structure+ reinforced gussets
6,Larger capacity ( dual radius contour+deep belly)
| Type | Material | Application |
| General Purpose(GP) Rake | Q355B/Q460 | Root Clearing, Soil, Sand |
| Heavy Duty(HD) Rake | Q355B/Q460/NM360 | Root, Soil, Sand, Gravel, Rock |
| Severe Duty Rake | Q355B/NM360/HARDOX500 | Root, Soil, Sand, Gravel, Rock, Metal, Construction material |
| Item/Model Unit | Unit | ZH02 | ZH04 | ZH06 | ZH08 | ZH10 |
| Weight | kg | 240 | 360 | 700 | 2000 | 2300 |
| Length | mm | 1010 | 1410 | 1830 | 2000 | 2600 |
| Width | mm | 360 | 485 | 635 | 785 | 945 |
| Height | mm | 880 | 1175 | 1460 | 1710 | 2050 |
| Suitable excavator | Ton | 4-6 | 5-9 | 9-16 | 16-24 | 24-32 |
1. Connecting dimensions – We are able to design as the dimensions on your excavator to make sure
that our products work.
2. Color – Every color you want.
3. Logo – You can choose your logo, and we will design for you.
4. Other needs – Whatever you want to make it accords with your needs, such as removing ear plates.
5. Special coupler – We are also able to provide if you can send us the dimensions.
1. We pack the products by pallet or case which is seaworthy.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience,
and can load the max quantity products, which can help customer save the ocean freight.
International standard pallet or wood case.
1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator(Width less than 42 inches )
2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.
Product Tags:
|
|
Q355B Material Mini Excavator Brush Rake Attachments For Land Clearing Images
|
